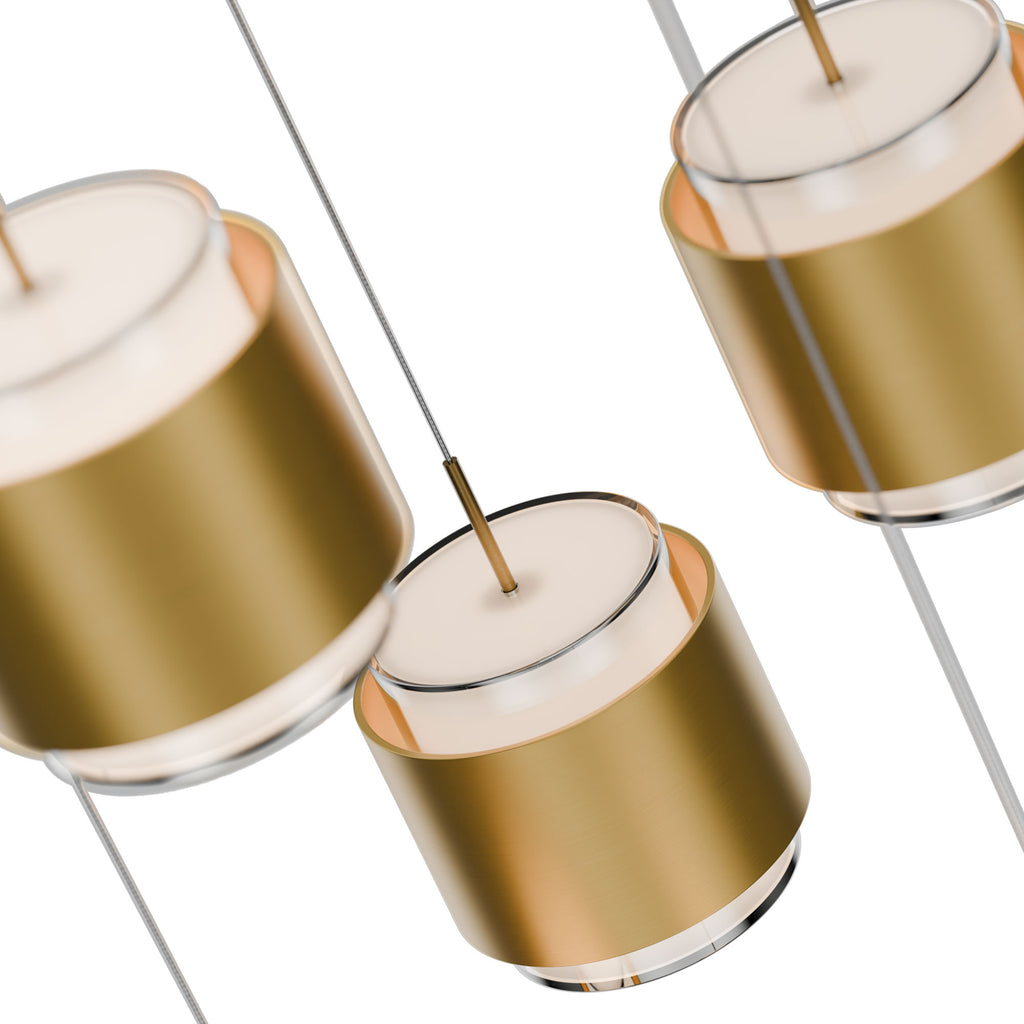

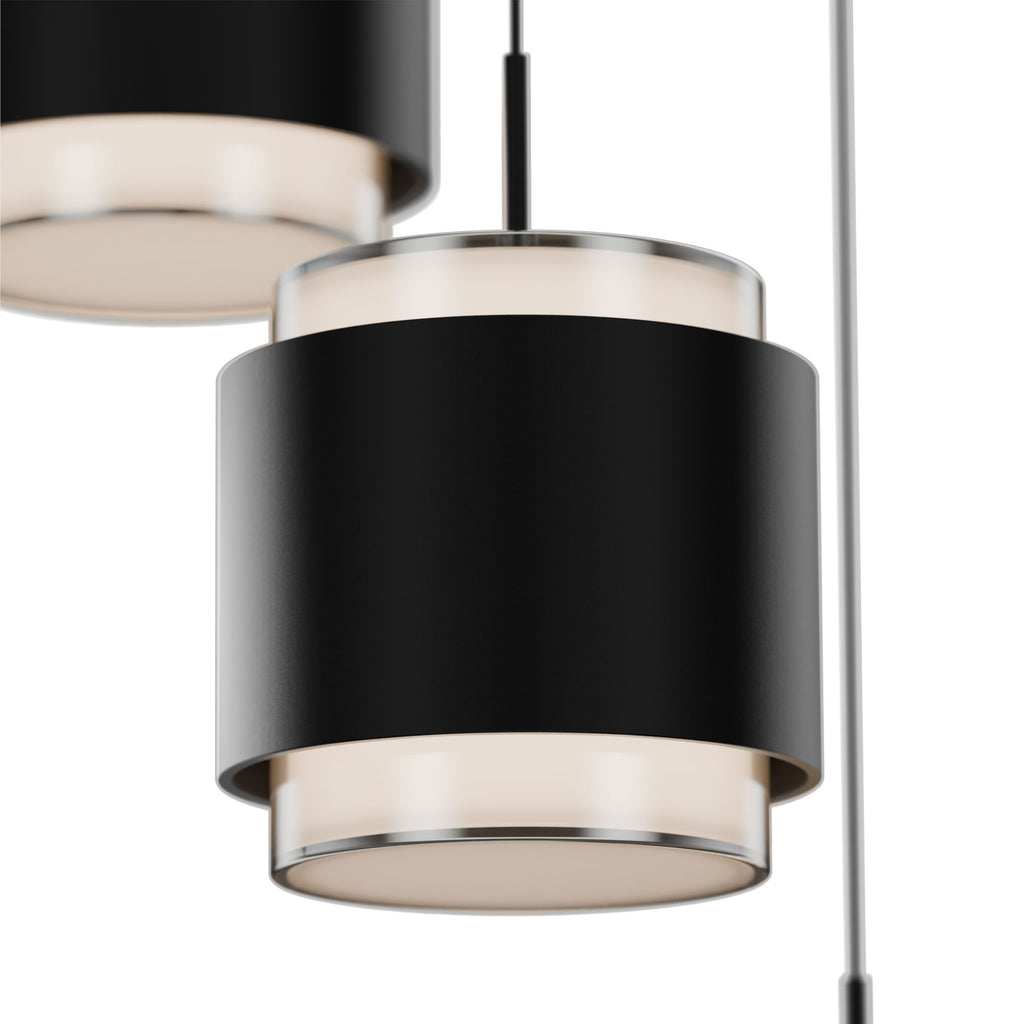

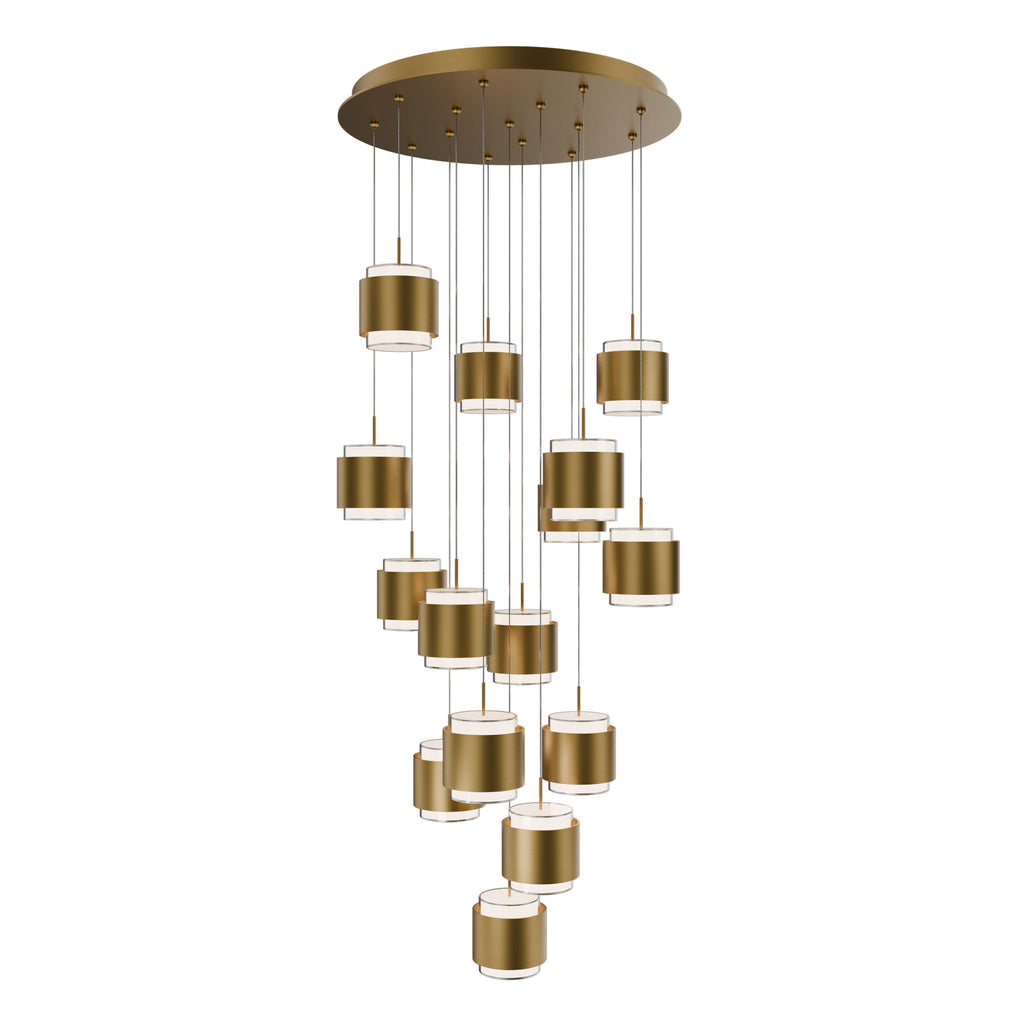

Banded Round Multi-Light Suspension

Features

Material Aluminum hardware
Glass

Finish Aged Brass & Black

Location Rating Damp

Warranty 5 Years

Certification cETL certification

Specification Banner Banded Round Multi-Light Suspension 3 Lights
Specification Banner Banded Round Multi-Light Suspension 5 Lights
Specification Banner Banded Round Multi-Light Suspension 9 Lights
Specification Banner Banded Round Multi-Light Suspension 15 Lights
Specification Banner Banded Round Multi-Light Suspension 21 Lights

Download the Specification Sheet

Dimensions/Specifications

Overall Dimensions

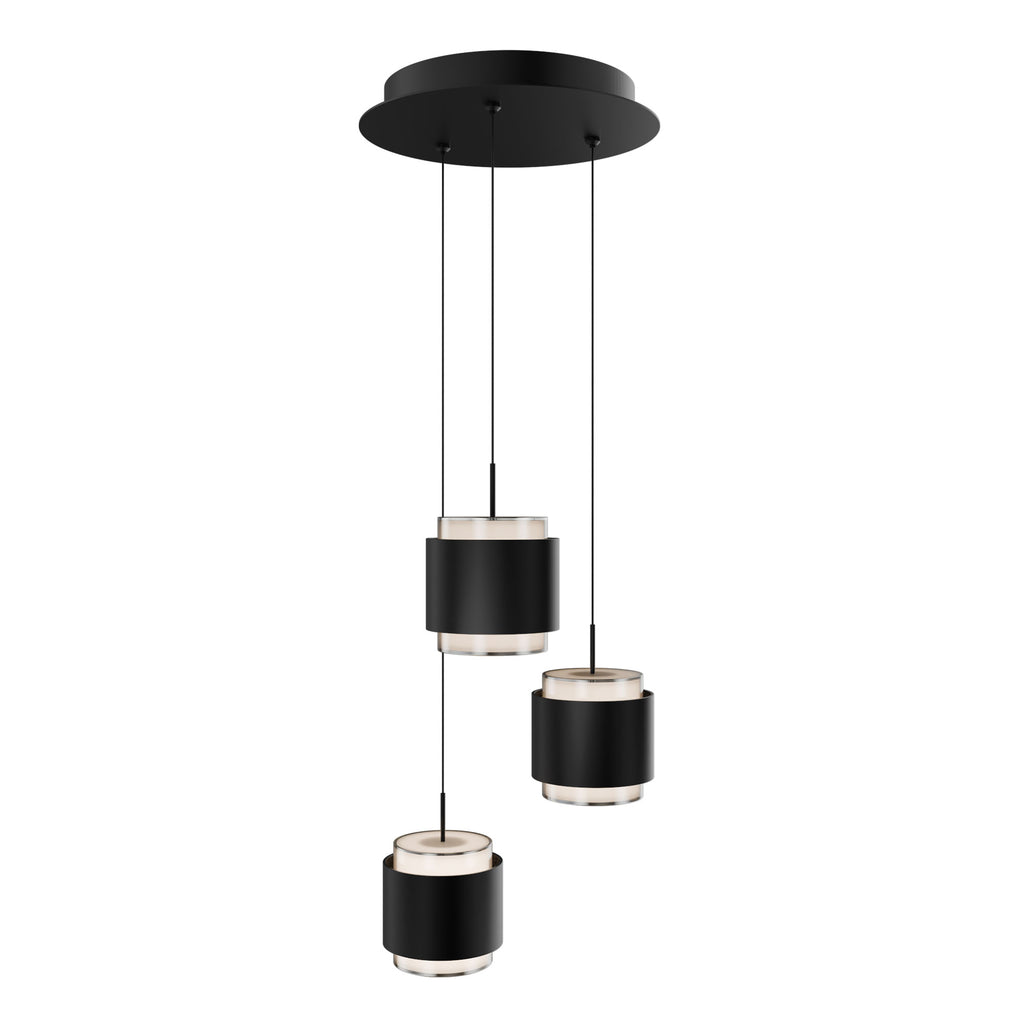

3 Lights:: Height: 5 Inch / 12.7 cm; Diameter: 11.75 Inch / 29.84 cm; Minimum Height: 15 Inch / 38.1 cm; Maximum Height: 180 Inch / 457.2 cm

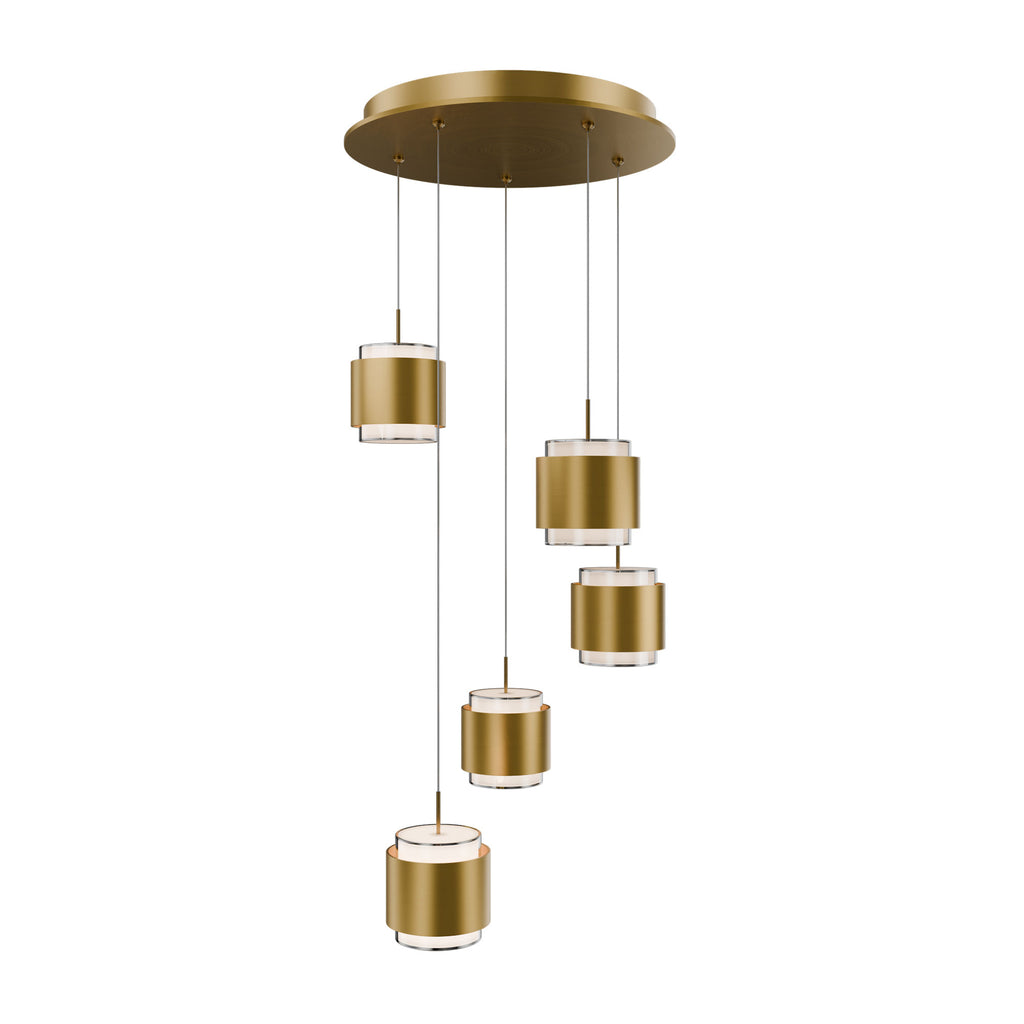

5 Lights:: Height: 5 Inch / 12.7 cm; Diameter: 16.87 Inch / 42.84 cm; Minimum Height: 15 Inch / 38.1 cm; Maximum Height: 180 Inch / 457.2 cm

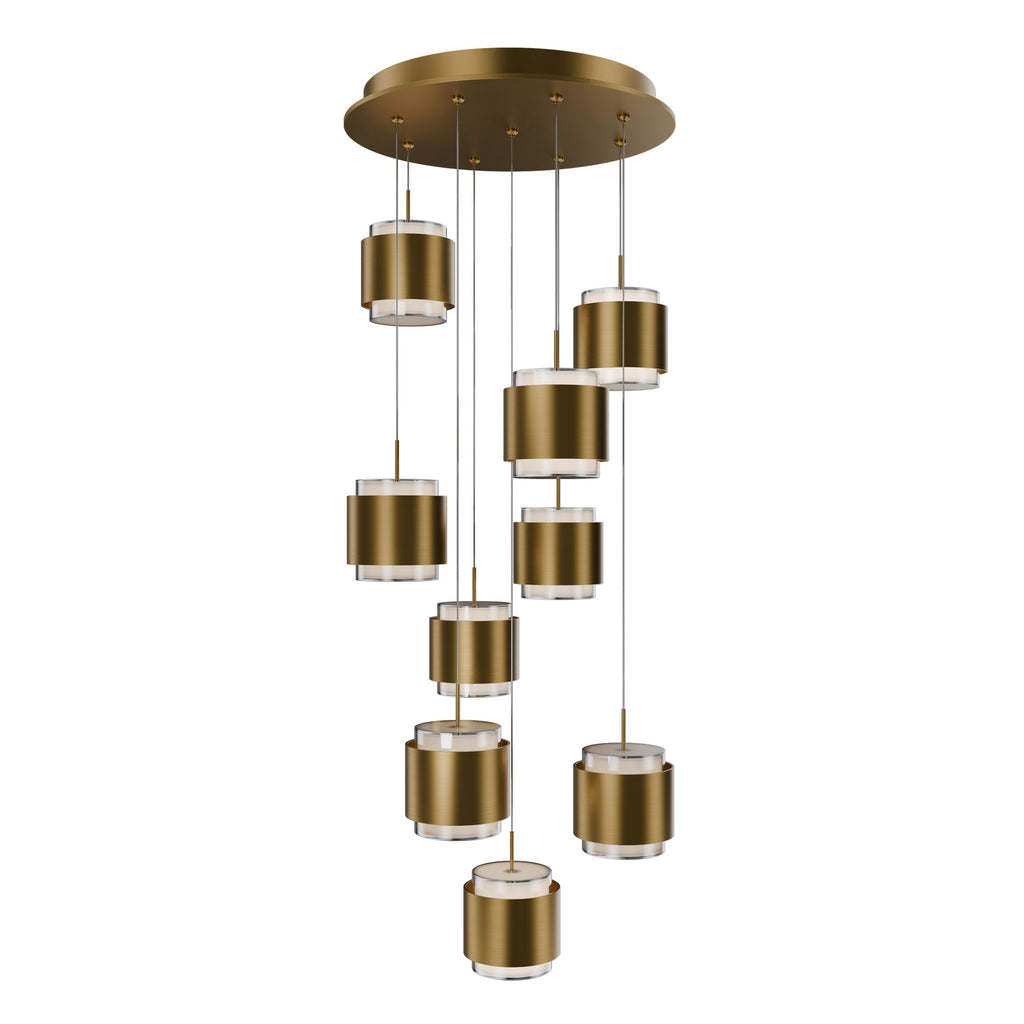

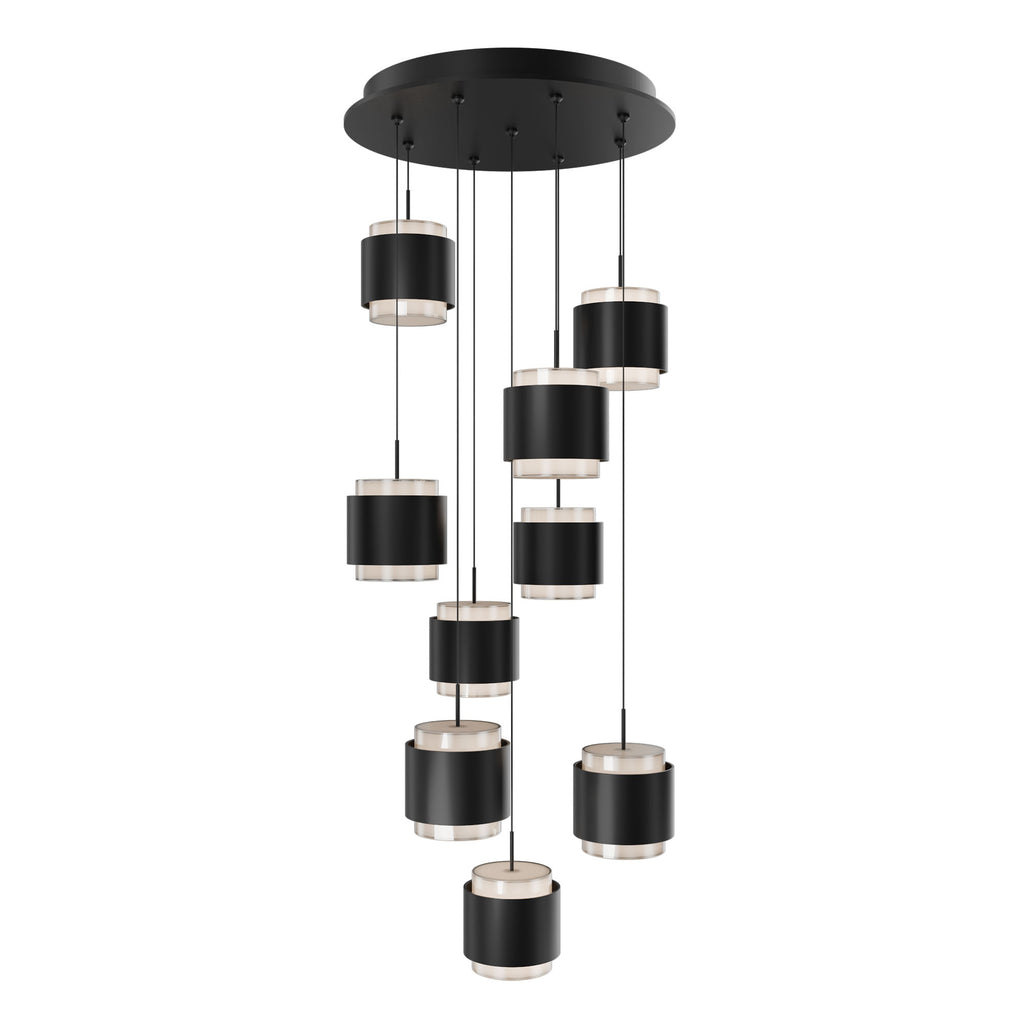

9 Lights:: Height: 5 Inch / 12.7 cm; Diameter: 17 Inch / 43.18 cm; Minimum Height: 15 Inch / 38.1 cm; Maximum Height: 180 Inch / 457.2 cm
15 Lights:: Height: 5 Inch / 12.7 cm; Diameter: 23 Inch / 58.42 cm; Minimum Height: 15 Inch / 38.1 cm; Maximum Height: 180 Inch / 457.2 cm

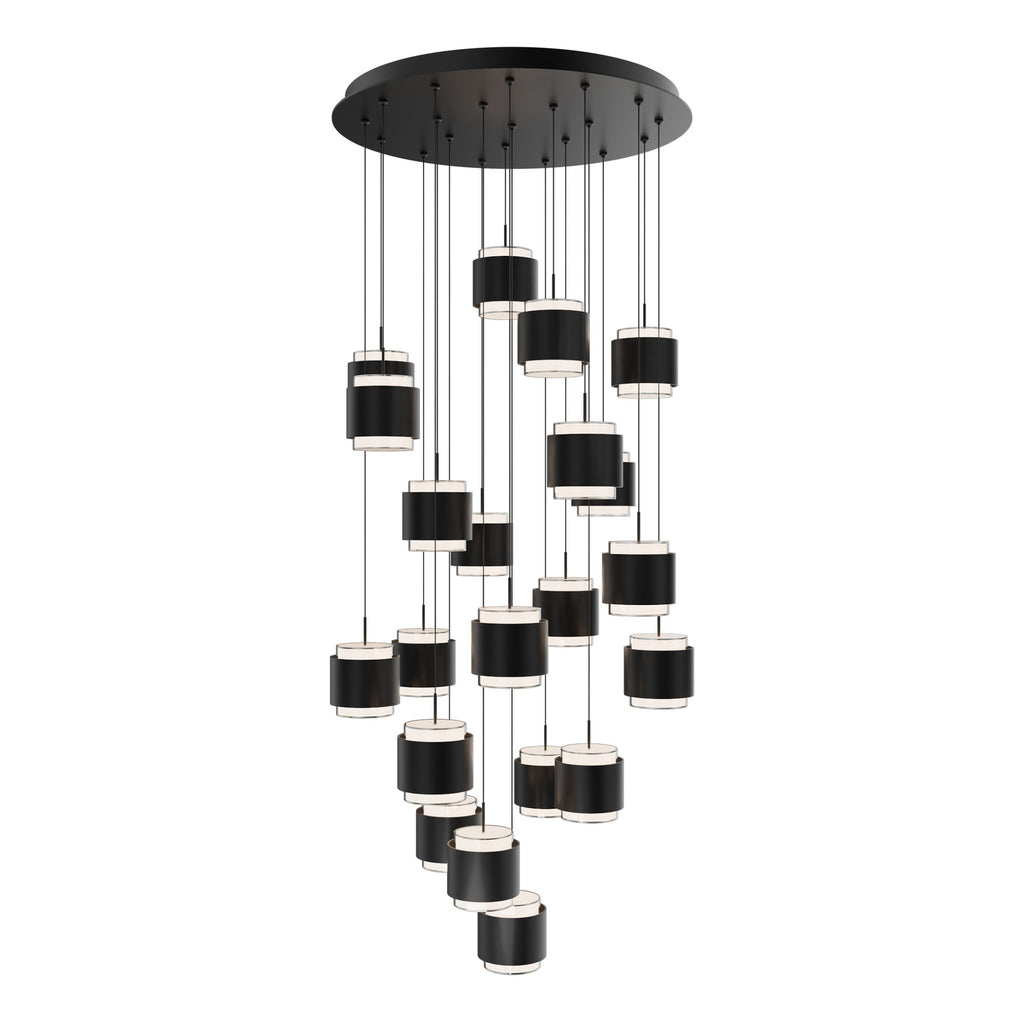

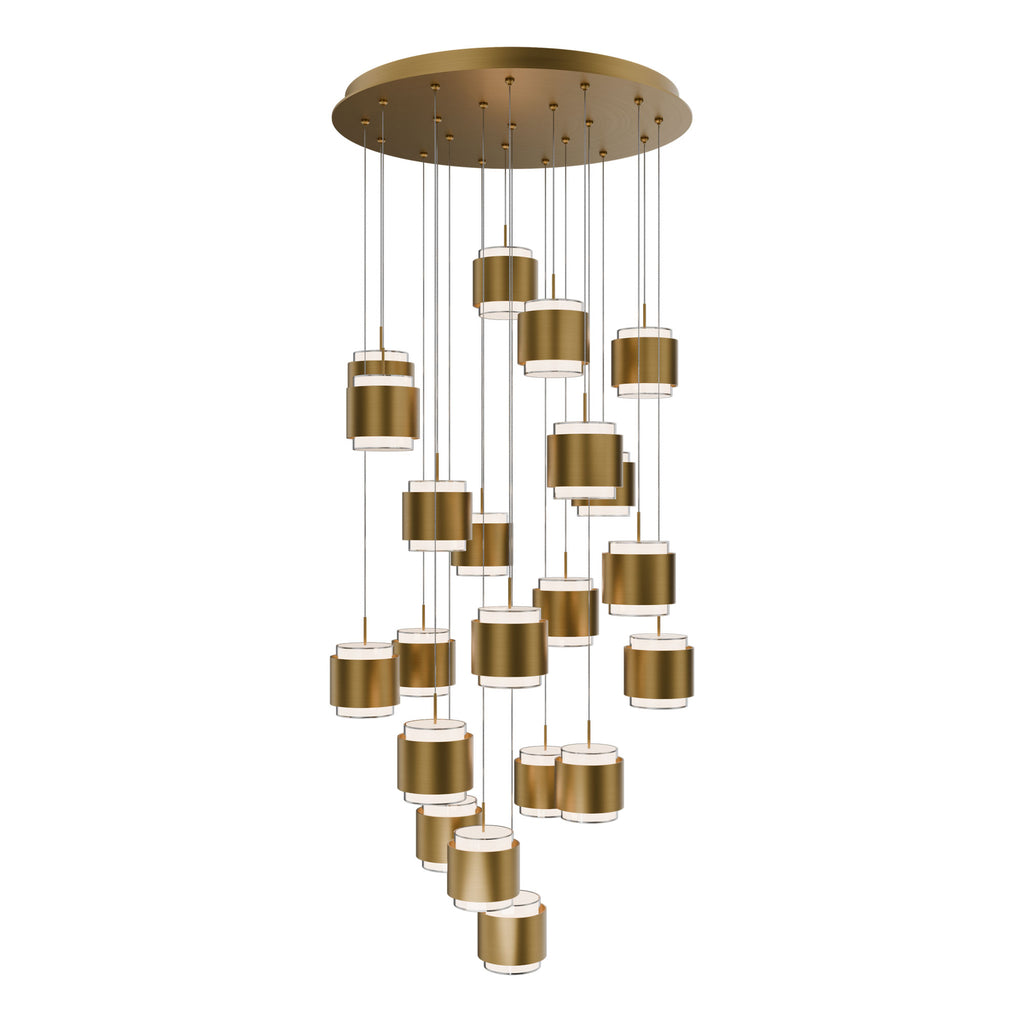

21 Lights:: Height: 5 Inch / 12.7 cm; Diameter: 26 Inch / 66 cm; Minimum Height: 15 Inch / 38.1 cm; Maximum Height: 180 Inch / 457.2 cm

Canopy Dimensions

3 Lights:: Height: 1.5 Inch / 3.81 cm; Diameter: 11.75 Inch / 29.84 cm
5 Lights:: Height: 1.5 Inch / 3.81 cm; Diameter: 16.87 Inch / 42.84 cm
9 Lights:: Height: 1.5 Inch / 3.81 cm; Diameter: 17 Inch / 43.18 cm
15 Lights:: Height: 1.5 Inch / 3.81 cm; Diameter: 23 Inch / 58.42 cm
21 Lights:: Height: 1.5 Inch / 3.81 cm; Diameter: 26 Inch / 66 cm

Adjustable Yes

Light source

Integrated LED:
3 Lights:: 26W, 120-277V, 50/60Hz, 90CRI, 2700K, 3000K, 3500K, 4000K, LED Lumens: 2397, Delivered Lumens: 1287.
5 Lights:: 50W, 120-277V, 50/60Hz, 90CRI, 2700K, 3000K, 3500K, 4000K, LED Lumens: 3995, Delivered Lumens: 2145.
9 Lights:: 79W, 120-277V, 50/60Hz, 90CRI, 2700K, 3000K, 3500K, 4000K, LED Lumens: 7191, Delivered Lumens: 3861.
15 Lights:: 132W, 120-277V, 50/60Hz, 90CRI, 2700K, 3000K, 3500K, 4000K, LED Lumens: 11985, Delivered Lumens: 6435.
21 Lights:: 184W, 120-277V, 50/60Hz, 90CRI, 2700K, 3000K, 3500K, 4000K, LED Lumens: 16779, Delivered Lumens: 9009.

Light option Integrated LED

Bulb Included Yes

Dimmable Yes

Other information ELV Dimming: 100-10%.
0-10V Dimming: 100-10%.
TRIAC Dimming: 100-10%.
Rated Life: 50000 Hours.
Thin,adjustable powered aircraft cables for an ultra-clean look.
May be mounted on a sloped ceiling.
Built in color temperature adjustability. Switch from 2700K/3000K/3500K/4000K.
Option to pre-select color temperature or adjust in the field.

Specification Banner Banded Round Multi-Light Suspension 3 Lights
Specification Banner Banded Round Multi-Light Suspension 5 Lights
Specification Banner Banded Round Multi-Light Suspension 9 Lights
Specification Banner Banded Round Multi-Light Suspension 15 Lights
Specification Banner Banded Round Multi-Light Suspension 21 Lights

Download the Specification Sheet

W.A.C. Lighting

WAC Lighting is an American company that has been producing lighting for residential and commercial use for nearly 40 years. WAC Lighting collections include products for indoor and outdoor use, including decorative lamps, under cabinet lights and landscape lighting. In its projects the company focuses not only on the great aesthetic values of its products, but also on providing solutions that are energy-saving, durable and sustainable.

W.A.C. Lighting

Banded Round Multi-Light Suspension

CA$1,431.40 CA$1,684.00 SAVE 15% + Free Shipping

Number of Lights:

3 Lights
5 Lights
9 Lights
15 Lights
21 Lights

Finish: Aged Brass

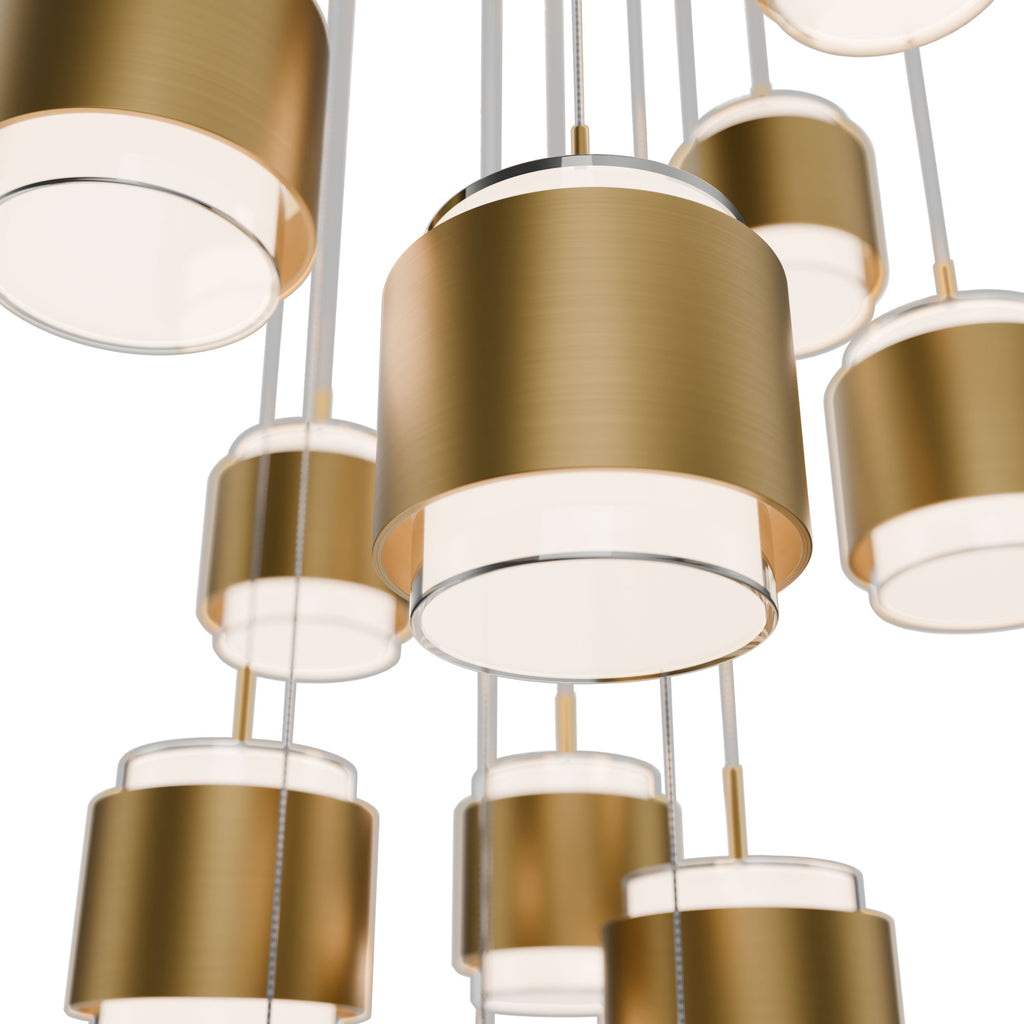

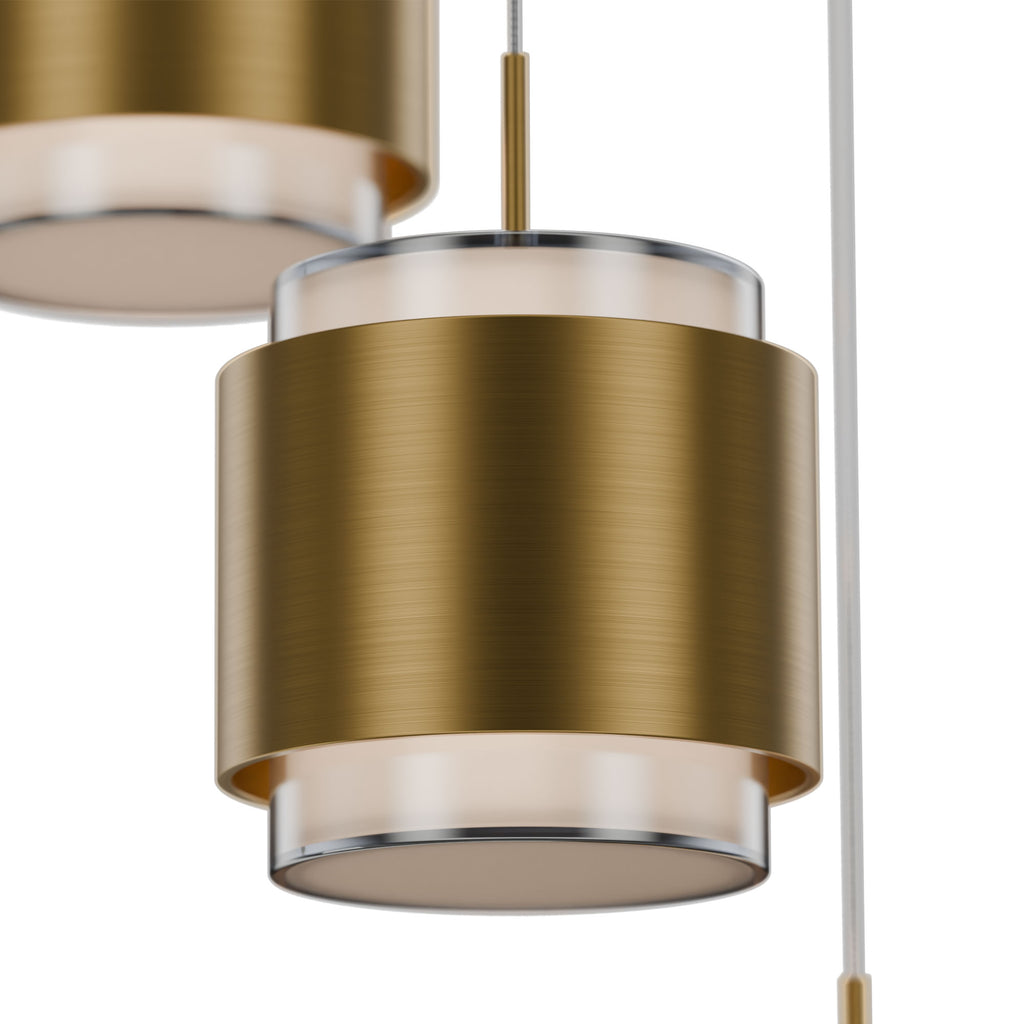

Aged Brass

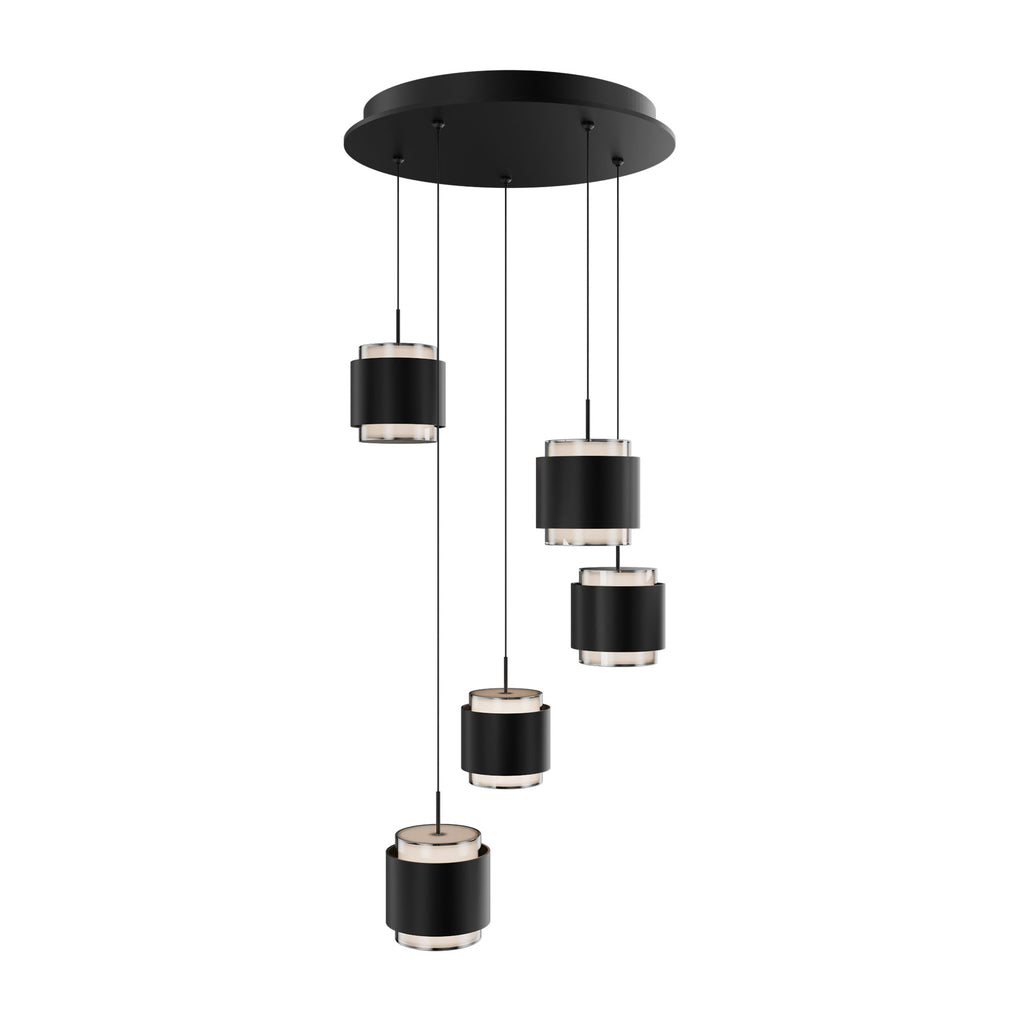

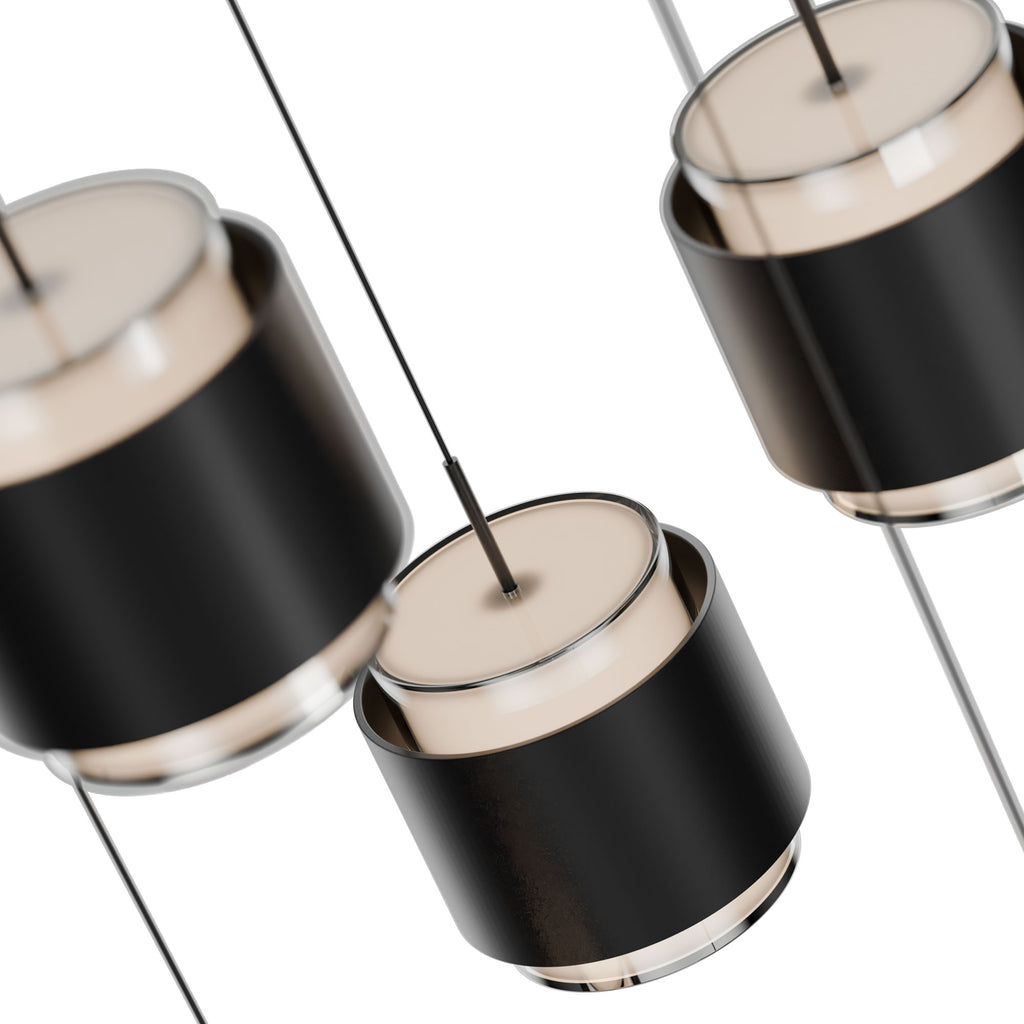

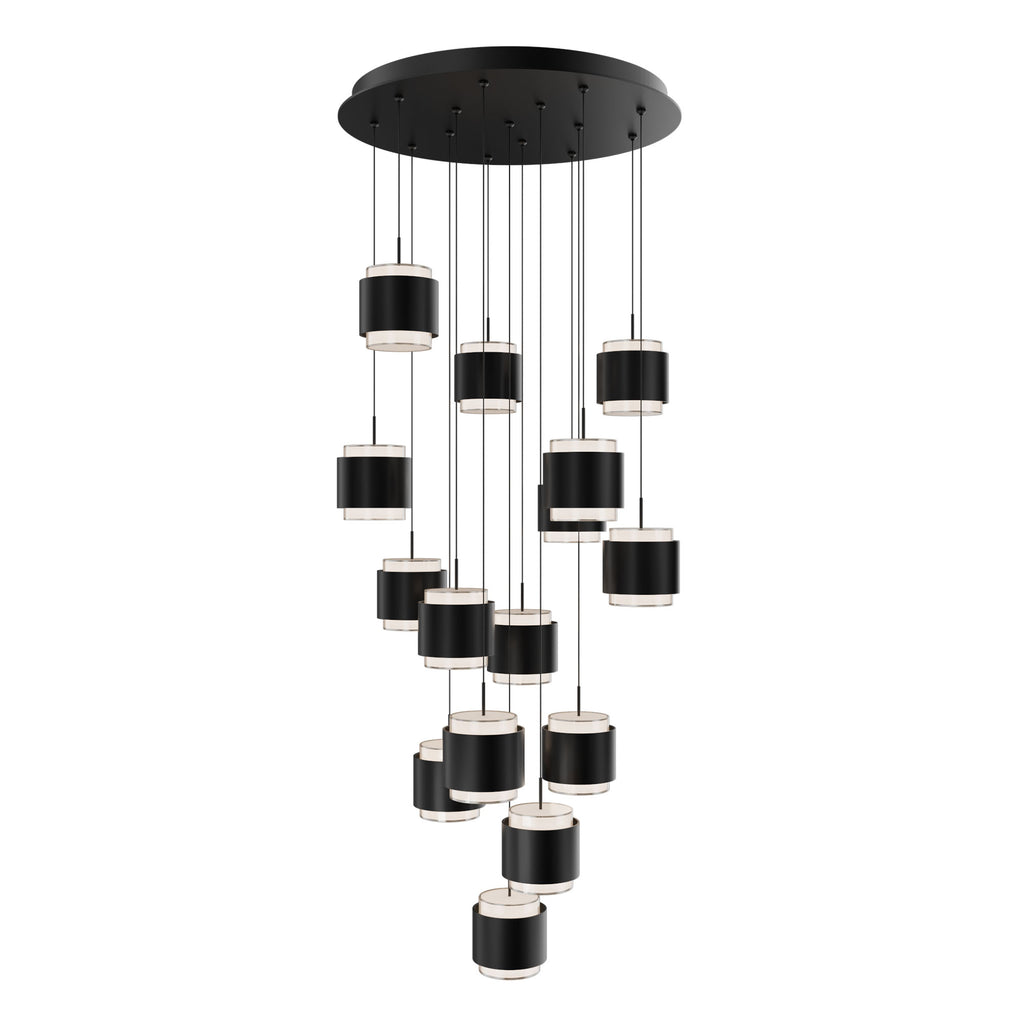

Black

Ships in 2 - 4 weeks

Shipping times are based on manufacturer stock. If this item is on backorder, we will follow up after purchase with updated timing.

Ships to USA

SKU: PD-68903R-AB
